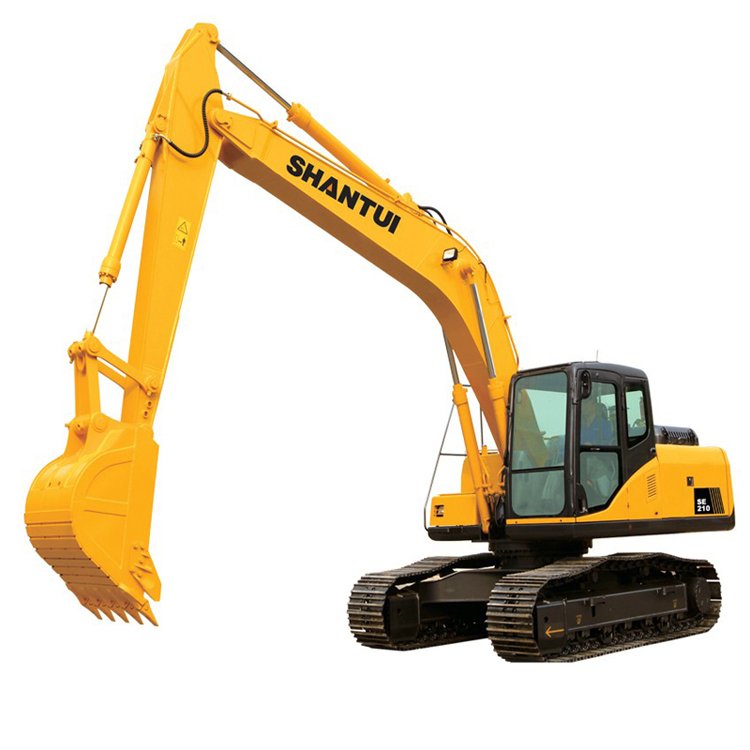

SHANTUI SE210-9

Overview

The Shantui SE210-9 Excavator is made from high-quality core parts, designed for optimal work performance, reliability and affordability of use – with its Cummins direct injection engine delivering Max Torque of 900 N.m @ 1400 rpm. This medium-sized excavator is great value for money and easy to service and maintain.

Product specifications for SHANTUI SE210-9

Make: Cummins
Model: B5.9-C
Rated Power: 112 kW @ 1950 rpm
Maximum Torque: 900 N.m @ 1400 rpm
Displacement: 5.9â„“
Cylinder: 6-102 x 120 mm (bore x stroke)
Type: 6-cylinder in line – turbocharged
Direct injection: YES
Air Filter: Two stage

Data not available at this time. Please contact your nearest dealer for more information.
Data not available at this time. Please contact your nearest dealer for more information.

Fuel tank: 330â„“
Engine coolant: 28â„“
Engine oil: 22â„“
Hydraulic tank: 270â„“
Travel motor case: 5â„“
Swing motor case: 4â„“
Hydraulic system total: 400â„“

Track shoe width: 600 mm
Grouser: 26 mm
No. of track shoes each side: 2×46
Pitch: 190 mm
Ground pressure: 47.5KPA
Number of top rollers: 2×2
Number of track rollers: 2×7

Working Pump: KPM K3V112DT
Type: Variable plunger pump
Maximum discharge flow: 2 x 218 L/min
Control circuit pressure: 3.9 MPa
Boom, Arm and Bucket pressure: 34.3 MPa
Travel Circuit pressure: 34.3 MPa
Swing Circuit pressure: 25.5 MPa

Front and head guard: Optional
A/C: YES
Adjustable air suspension seat: YES
Seat belt: YES
Fire extinguisher: YES
SABS Standard Engine oil pressure meter: YES
Hydraulic oil temperature meter: YES
Coolant temperature meter: YES
Hour meter: YES
Voltage meter: YES
Vibration Absorption: YES
Impact Resistance: YES
Controls: Two Joysticks – Two Foot Pedals – Manual/Electronic Controlled Throttle.

Overall length: 12090 mm
Overall height: 3073 mm
Length from center to rear end: 2920 mm
Length between centers of drive wheel and idler: 3360 mm
Track length: 4140 mm
Clearance height under upper structure: 3055 mm
Minimum ground clearance: 470 mm
Upper structure width: 990 mm
Lower structure width: 2800 mm
Track gauge: 2200 mm

Batteries: 2x12V-120Ah maintenance free
Starter Motor: 5.4 kW
Alternator: 70A

Data not available at this time. Please contact your nearest dealer for more information.
Data not available at this time. Please contact your nearest dealer for more information.
Data not available at this time. Please contact your nearest dealer for more information.
Data not available at this time. Please contact your nearest dealer for more information.
