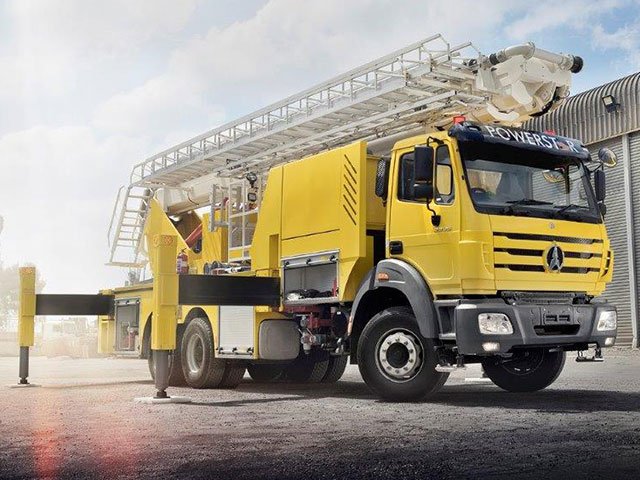

Powerstar VX 3335 6×4
Overview
Engine
Make: Weichai Euro 2 Intercooled
Model Configuration: WP 10-340 E32
Max Power Kw @ r/min: 250/2200
Max Power N.m @ r/min: 1350/1200-1600
HP: 350
Cylinder: 6 Inline
Water Cooled: Yes
Direct Injection: Yes
Engine driven P.T.O: No
Displacement (l): 9.726
Compression Ratio: 17:01
Transmission
Make/Model: 9T-1800 (N71/1C – LWB)
No of Gears: 9
Synchromesh or Constant Mesh: Synchromesh
Transfer Box: N/A
P.T.O: Yes
Brakes
Service: Double circuit air brakes
Emergency / Parking: Spring potential brake Auxiliary: ABS & EVB
Warranty
New Vehicle: 3 years / 300 000km (SA only)
Product specifications for Powerstar VX 3335 6×4
Size and ply rating: 315/80/R22.50 incl spare wheel
Type: VR4/01D-7.5
Suspension: Non-free standing stabilization leaf spring, hydraulic shock absorber, transverse stabilizer
Type: HL7/015DS-13/4.769
Suspension: Stabilization suspension, 13pcs leaf spring (each 20mm)
Alternator: 70Amp
Starter Motor: 5.58kW
Batteries: 2 x 12V / 135AH
Gradeability @ GVM: 40% @ GVM
Max Geared Road Speed: 90km/h
Final Drive Ratio: 4.769
Make / Type / Size: GFX 430mm single
Operation: Single dry frictional disc, diaphragm spring, pulling type
Overall Length (OL): 7 230 (SWB) / 9 390 (LWB)
Overall Width (OW): 2 495
Overall Height (OH): 3 085
Front Overhang (FOH): 1 435
Rear Overhang (ROH): 780 (SWB) / 1 940 (LWB)
Wheel Base (WB): 4 175 (SWB) / 5 175 (LWB)
Bumper to Back of Cab (BBC): 1 880
Cab to rear axle / unit (CA): 3 755 (SWB) / 4 735 (LWB)
Turning Circle (TC): 8 500
Fuel Tank Capacity: 400l
Manufacturers Gross Vehicle Mass (GVM): 33 000
Manufacturers Gross Combination Mass (GCM): 43 000
Manufacturers Front Axle mass (GA): 7 500
Manufacturers Rear Axle mass (GAU): 26 000
Permissible Maximum Vehicle Mass (V): 25 500
Permissible Maximum Front Axle Mass (AF): 7 500
Permissible Maximum Rear Axle Mass (AR): 18 000
Unladen Front Axle Mass (UF): 4 140
Unladen Rear Axle Mass (UR): 4 540
Total Unladen Mass (UT) 8 680
Permissible Max Drawing Vehicle Mass (D/T) 43 000
Hydraulic Tiltable Cab
