Overview
Engine
Make: Weichai Euro 3 Turbo charged Intercooled
Model Confirguration: WP12.460N
Max Power – Kw @ r/min: 338/1900
Max Power – N.m @ r/min: 2110/1000~1400
HP: 460
Cylinder: 6 inline
Water Cooled: Yes
Direct Injection: Yes
Engine Driven P.T.O: No
Displacement (I): 11,596
Compression Ratio: 17,01
Transmission
Make/Model: Fast Gear 16JZSD240A AMT
No Gears: 16
Synchromesh or Constant Mesh: Synchromesh
Transfer Box: NA
P.T.O: No
Retarder: FHB320B
Brakes
Service: Dual circuit air brakes
Emergency / Parking: Spring potential brake
Auxiliary: ABS & EVB
Warranty
Warranty:Â New Vehicle 3 years / 400 000 km (SA Only)

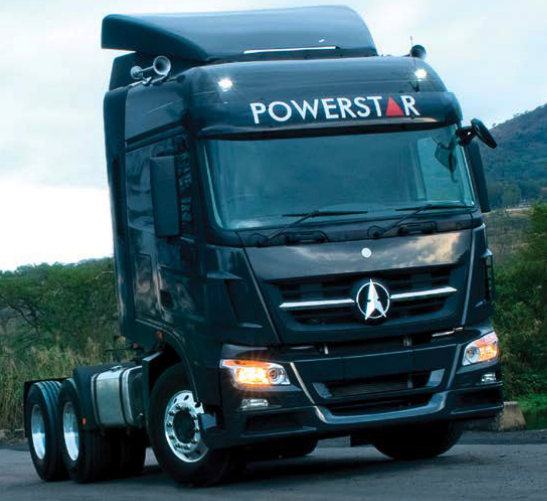

Product specifications for Powerstar V3 2646S AMT 6×4
Size and ply rating:Â (F) – 385/65R22.5
(R)-315/80R22.5 incl spare wheel
Aluminium Rims
Type: VR4/01C-7.5 Disc Brake
Suspension: Three leaf spring, hydraulic shock absorber, transverse stabilizer
Type: HD6/01CG & HL6/01C-13 Hypoid Disc Brake
Beiben440
Suspension: Stabilizer suspension, four leaf spring
Alternator: 80Amp
Starter Motor: 5.58kW
Batteries: 2 x 12V – 180AH
Gradeability: @ GVM 22% @ GVM
Max Geared Road Speed: 107 km/h (Limited to 80km/h)
Final Drive Ratio: 4,11
Make / Type / Size: GFX 430mm single
Operation: Single dry frictional disc, diaphragm spring, pulling type
Crawler
1st: 14,03
2nd: 11,64
3rd: 9,6
4th: 7,97
5th: 6,64
6th: 5,51
7th: 4,55
8th: 3,78
9th: 3,08
10th: 2,56
11th: 2,11
12th: 1,75
13th: 1,46
14th: 1,21
15th: 1
16th: 0,83
Reverse L: 16,3
Reverse H: 13,42
Overall Length (OL): 6Â 905
Overall Width (OW): 2500
Overall Height (OH): 3Â 475
Front Overhang (FOH): 1Â 515
Rear Overhang (ROH): 703
Wheel Base (WB): 3Â 975
Bumper to Back of Cab (BBC): 2Â 625
Cab to rear axle / unit (CA): 2Â 905
Turning Radius (TR): 9Â 000
Fuel Tank Capacity (FTC): 700 LTR Aluminium
Manufacturers Gross Vehicle Mass (GVM): 26Â 000
Manufacturers Gross Combination Mass (GCM): 65Â 000
Manufacturers Front Axle Mass (GA): 7Â 500
Manufacturers Rear Axle Mass (GAU): 26Â 000
Permissible Maximum Vehicle Mass (V): 25Â 500
Permissible Maximum Front Axle Mass (AF): 7Â 500
Permissible Maximum Rear Axle Mass (AR): 18Â 000
Unladen Front Axle Mass (UF): 4Â 750
Unladen Rear Axle Mass (UR): 3Â 990
Total Unladen Mass (UT): 8Â 740
Permissible Max Drawing Vehicle Mass (D/T): 65Â 000
Sleeper Cab: Hydraulic Tiltable Cab
