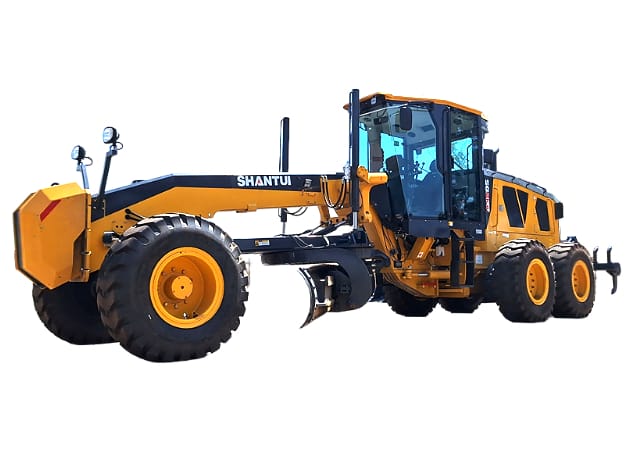

Shantui SG21-C6

Find out more information about the Shantui SG21-C6

This products spec sheet is currently unavailable, please contact us for more information.

Product specifications for Shantui SG21-C6

ENGINE

Model: Weichai WP7G220E300
Number of Cylinders: 6
Type: 4-cycle, electronic injection, water-cooled
Aspiration: Turbocharged, air-air intercooled
Bore x Stroke: 108*136mm
Displacement: 7.47L
Rated Power: 162kW @ 2200rpm
Max. Traction: 87kN
Max. Torque: 1000N.m @ 1300-1500rpm
Rated Fuel Consumption: 220g/kW.h
Emission: China-III

POWER TRAIN

Transmission: Fixed-axis type, electro-hydraulic control
Torque Converter: Single-stage, single-phase, three basic elements
Rear Axle: Modular, planetary reduction, “no-Spin” antiskid differential
Tandem Drive: Roller chain. Oscillating angle: ±15°
Tyre: 17.5-25PR12
Front Axle: Oscillating angle: ±16°. Tilting angle: ±18°

STEERING

Type: Hydraulic power
Front Wheel Steering Angle: ±50°
Articulation Angle: ±23°
Min. Turning Radius: 7500mm

BRAKES

Service Brake: Drum type, foot operated, single circuit, hydraulically actuated on four tandem wheels
Parking Brake: Drum type, manually actuated

MOLDBOARD

Rotation: 360°
Moldboard Width: 3965/4270mm
Moldboard Height: 620mm
Moldboard Thickness: 20mm
Moldboard Tip Angle: 22~73°
Max. Cutting Depth: 970mm
Max. Lifting Height: 480mm
Max. Shoulder Reach (Left/Right): 1900/1950mm
Max. Tilting Angle (Left/Right): ±90°

SPEED

Forward, 1-6: 5.5\9.1\12.2\20.7\26.5\39.2km/h
Reverse, 1-3: 5.3\12.4\26.1km/h

HYDRAULICS

Tandem Pump: Gear pump. 32ml/r \ Piston pump 75ml/r
Relief Pressure for Working Equipment: 18MPa / 24MPa
Relief Pressure for Steering: 16.5MPa
Relief Pressure for Brakes: 10MPa

CAPACITIES

Fuel Tank: 360L
Hydraulic Oil Tank: 85L
Engine Crank Case: 19L
Engine Coolant: 33L

ELECTRICAL SYSTEM

Battery: 2x12V, 105Ah
Alternator: 28V, 70A
Starter Motor: 24V, 6kW

OPERATING WEIGHT

Standard: 16800kg
With Front Blade: 17860kg
With Rear Ripper: 18350kg
With Front Blade & Rear Ripper: 19000kg

RIPPER (OPTIONAL)

Ripping Depth: 425mm
Shank Supports: 5
Shank Support Spacing: 520mm
Working Width: 2080mm

FRONT BLADE (OPTIONAL)

Width x Height: 2740x890mm
Thickness: 12mm
Max. Lifting Height: 660mm
Max. Digging Depth: 425mm

DIMENSIONS

Overall Standard Length: 9270mm
Overall Length with Rear Ripper: 10620mm
Overall Length with Front Blade: 10380mm
Overall Length with Front Blade & Rear Ripper: 11140mm
Length of Front Axle to Mid Tandem: 6560mm
Length Between Tandem Axles: 1540mm
Height of Cab: 3400mm
Tread: 2155mm
Width Outside Tyres: 2600mm
Moldboard Width: 3965/4270mm
Minimum Ground Clearance: 400mm



ENGINE

Model: Weichai WP7G220E300
Number of Cylinders: 6
Type: 4-cycle, electronic injection, water-cooled
Aspiration: Turbocharged, air-air intercooled
Bore x Stroke: 108*136mm
Displacement: 7.47L
Rated Power: 162kW @ 2200rpm
Max. Traction: 87kN
Max. Torque: 1000N.m @ 1300-1500rpm
Rated Fuel Consumption: 220g/kW.h
Emission: China-III

POWER TRAIN

Transmission: Fixed-axis type, electro-hydraulic control
Torque Converter: Single-stage, single-phase, three basic elements
Rear Axle: Modular, planetary reduction, “no-Spin” antiskid differential
Tandem Drive: Roller chain. Oscillating angle: ±15°
Tyre: 17.5-25PR12
Front Axle: Oscillating angle: ±16°. Tilting angle: ±18°

STEERING

Type: Hydraulic power
Front Wheel Steering Angle: ±50°
Articulation Angle: ±23°
Min. Turning Radius: 7500mm

BRAKES

Service Brake: Drum type, foot operated, single circuit, hydraulically actuated on four tandem wheels
Parking Brake: Drum type, manually actuated

MOLDBOARD

Rotation: 360°
Moldboard Width: 3965/4270mm
Moldboard Height: 620mm
Moldboard Thickness: 20mm
Moldboard Tip Angle: 22~73°
Max. Cutting Depth: 970mm
Max. Lifting Height: 480mm
Max. Shoulder Reach (Left/Right): 1900/1950mm
Max. Tilting Angle (Left/Right): ±90°

SPEED

Forward, 1-6: 5.5\9.1\12.2\20.7\26.5\39.2km/h
Reverse, 1-3: 5.3\12.4\26.1km/h

HYDRAULICS

Tandem Pump: Gear pump. 32ml/r \ Piston pump 75ml/r
Relief Pressure for Working Equipment: 18MPa / 24MPa
Relief Pressure for Steering: 16.5MPa
Relief Pressure for Brakes: 10MPa

CAPACITIES

Fuel Tank: 360L
Hydraulic Oil Tank: 85L
Engine Crank Case: 19L
Engine Coolant: 33L

ELECTRICAL SYSTEM

Battery: 2x12V, 105Ah
Alternator: 28V, 70A
Starter Motor: 24V, 6kW

OPERATING WEIGHT

Standard: 16800kg
With Front Blade: 17860kg
With Rear Ripper: 18350kg
With Front Blade & Rear Ripper: 19000kg

RIPPER (OPTIONAL)

Ripping Depth: 425mm
Shank Supports: 5
Shank Support Spacing: 520mm
Working Width: 2080mm

FRONT BLADE (OPTIONAL)

Width x Height: 2740x890mm
Thickness: 12mm
Max. Lifting Height: 660mm
Max. Digging Depth: 425mm

DIMENSIONS

Overall Standard Length: 9270mm
Overall Length with Rear Ripper: 10620mm
Overall Length with Front Blade: 10380mm
Overall Length with Front Blade & Rear Ripper: 11140mm
Length of Front Axle to Mid Tandem: 6560mm
Length Between Tandem Axles: 1540mm
Height of Cab: 3400mm
Tread: 2155mm
Width Outside Tyres: 2600mm
Moldboard Width: 3965/4270mm
Minimum Ground Clearance: 400mm



Data not available at this time. Please contact your nearest dealer for more information.
Data not available at this time. Please contact your nearest dealer for more information.

Model: Weichai WP7G220E300
Number of Cylinders: 6
Type: 4-cycle, electronic injection, water-cooled
Aspiration: Turbocharged, air-air intercooled
Bore x Stroke: 108*136mm
Displacement: 7.47L
Rated Power: 162kW @ 2200rpm
Max. Traction: 87kN
Max. Torque: 1000N.m @ 1300-1500rpm
Rated Fuel Consumption: 220g/kW.h
Emission: China-III
