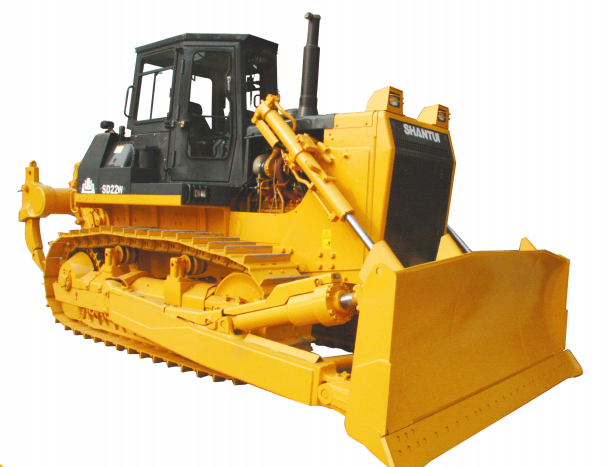

One of Shantui’s top sellers in Africa, the SD22W has a reinforced undercarriage, arms and blade for the toughest of large obstacle jobs, such as large rocks and boulders. The blade is thicker and the arms plated for greater strength and durability and is well-suited for heavy mining applications.

Product specifications for SHANTUI SD22W

Make: Cummins
Model: NT855-C280S10
Rated Power: 162 kW @ 1800 rpm
Maximum Torque: 1030 Nm @1250 rpm
Displacement: 14.1 L
Cylinder: 6 – 139.7 x 152 mm (bore x stroke)
Water cooled: Yes
Direct injection: Yes
Radiator:Enlarged tropical radiator

Torque converter: YJ409, 3-element, single-stage, single phase, ratio 2.3 – 2.54
Transmission: Planetary gear type, multi-disc clutch, hydraulically connected, forced lubri- cation
Main drive: Spiral bevel gear, splash lubrication, single-stage speed reduction, ratio 2.33
Steering clutch: Wet, multi-disc, spring loaded, hydrauli- cally seperated, hydraulic control
Steering brake: Wet, floating, direct on-off hydraulic inter-linking operation Final drive: 2-stage speed reduction of spur gear, splash lubrication, ratio 17.19
Number of drive wheel teeth: 25

Ripper type: Parallelogram adjustable and removable 3-shank ripper
Maximum digging depth: 665 mm
Maximum lift above ground: 555 mm
Weight: 2495 kg

Fuel tank: 450 L
Engine coolant: 112.5 L
Engine oil: 45 L
Hydraulic tank: 110 L
Transmission and steering case: 122 L
Final drive case: 82 L each side

Make: SHANTUI Type: Swing type of sprayed beam, suspended structure of equalizer
Carrier rollers: 2 each side
Track rollers: 6 each side
Track type:Assembled, single-grouser track
Track shoe width: 560 mm
Grouser height: 72 mm
No. of track shoes: 38 each side
Pitch: 216 mm
Ground pressure: 0.077 Mpa

Rated pressure: 14 MPa
Pump type: Gear Pump
Flow rate: 262 L/min
Blade lift cylinder: ?120 mm ? 2
Blade tilt cylinder: ?200 mm ? 1
Ripper cylinder: ?150 mm ? 2

Adjustable air suspension seat: YES
Seat belt: YES
Strobe light: YES
Fire extinguisher: YES, SABS Standard
Engine oil pressure meter: YES
Hydraulic oil temperature meter: YES
Coolant temperature meter: YES
Hour meter: YES
Voltage meter: YES

Overall length: 6790 mm
Overall width: 3725 mm
Overall height: 3402 mm
Ripper overall width: 2227 mm
Machine width (Blade off): 2620 mm
Machine length (Blade off): 5500 mm
Min. ground clearance: 405 mm
Min. turning radius: 3.3 m
Gradeability: 30?
Track Gauge: 2000 mm
Operating weight: 23.44 ton

Batteries: 2 x 12 V-165 Ah
Starter Motor: 11 kW
Alternator: 35 A
