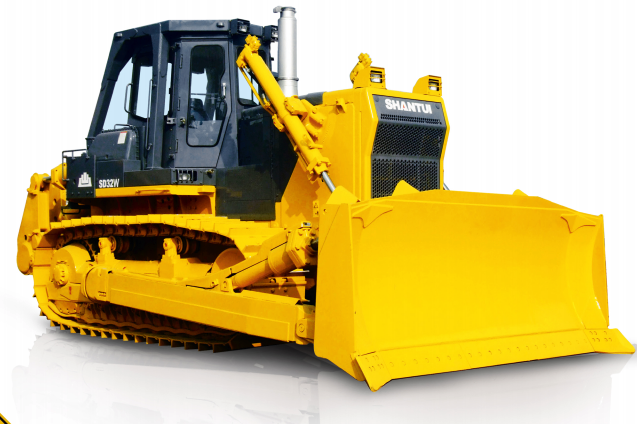

The third largest among Shantui’s powerful lineup of heavy-duty dozers, the SD32W is a beast that really rocks in tough working conditions. It comes with a rock-type blade and tracks, giving it the nimbleness it needs to perform with great efficiency when adapting to harsh conditions.

Product specifications for SHANTUI SD32W

Make: Cummins
Model: NTA855-C360S10
Rated Power: 235 kW @ 2000 rpm
Maximum Torque: 1440 Nm @ 1400 rpm
Displacement: 14.010 L
Cylinder: 6 – 139.7 x 152.4 mm (bore x stroke)
Water cooled: Yes
Direct injection: Yes
Radiator: Enlarged tropical radiator

Torque converter: YJ409, 3-element, single-stage, single phase, ratio 2.3 – 2.54
Transmission: Planetary gear type, multi-disc clutch, hydraulically connected, forced lubri- cation
Main drive: Spiral bevel gear, splash lubrication, single-stage speed reduction, ratio 2.33
Steering clutch: Wet, multi-disc, spring loaded, hydrauli- cally seperated, hydraulic control
Steering brake: Wet, floating, direct on-off hydraulic inter-linking operation
Final drive: 2-stage speed reduction of spur gear, splash lubrication, ratio 17.19
Number of drive wheel teeth: 25

Data not available at this time. Please contact your nearest dealer for more information.

Fuel tank: 640 L
Engine coolant: 121 L
Engine oil: 47 L
Hydraulic tank: 164 L
Transmission and steering case: 185 L
Final drive case: 110 L each side

Type: Swing type of sprayed beam, suspended structure of equalizer bar
Carrier rollers: 2 each side
Track rollers: 7 each side
Track type: Assembled, single-grouser track
Track shoe width: 560 mm
Grouser height: 80 mm
No. of track shoes: 41 each side
Pitch: 228.6 mm
Ground pressure: 0.084 Mpa

Rated pressure: 14 MPa
Pump type: Gear Pump
Flow rate: 355 L/min
Blade lift cylinder: ?140 mm ? 2
Blade tilt cylinder: ?225 mm ? 1
Ripper cylinder: ?225 mm ? 4

Adjustable air suspension seat: YES
Seat belt: YES
Strobe light: YES
Fire extinguisher: YES, SABS Standard
Engine oil pressure meter: YES
Hydraulic oil temperature meter: YES
Coolant temperature meter: YES
Hour meter: YES
Voltage meter: YES

Overall length: 8650 mm
Overall width: 4130 mm
Overall height: 3725 mm
Ripper overall width: 2420 mm
Machine width (Blade off): 2780 mm
Machine length (Blade off): 7360 mm
Min. ground clearance: 500 mm
Min. turning radius: 3.8 m
Gradeability: 30?
Track Gauge: 2140 mm
Operating weight: 38 ton

Batteries: 2 x 12 V-165 Ah
Starter Motor: 7.5 kW
Alternator: 35 A
