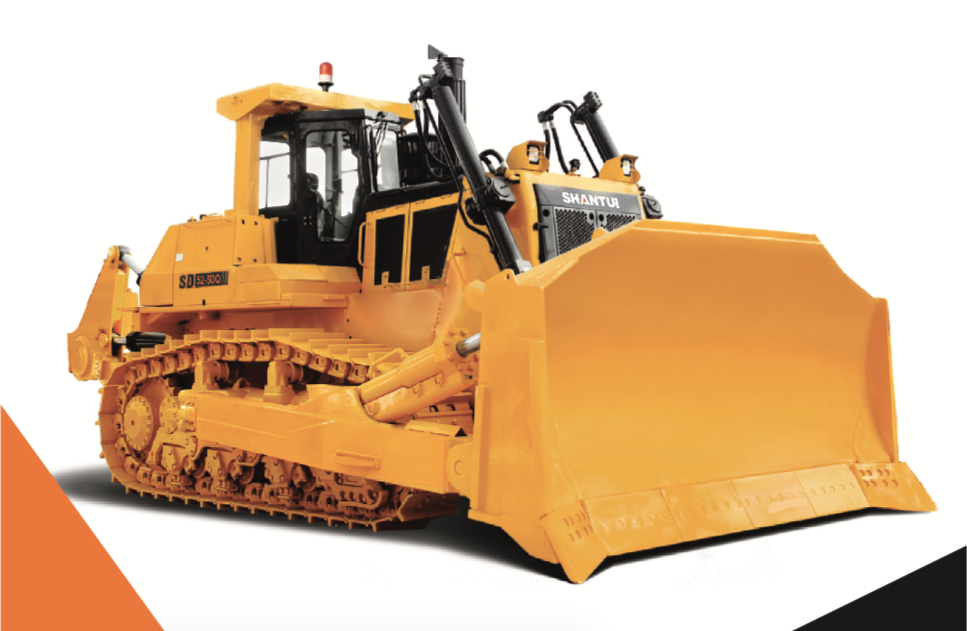

Find out more information about the SHANTUI SD52-5

This products spec sheet is currently unavailable, please contact us for more information.

Product specifications for SHANTUI SD52-5

Make: Cummins
Model: QSK19
Rated Power: 392 kW @ 1800 rpm
Maximum Torque: 3019 Nm @ 1300 rpm
Displacement: 19 L
Cylinder: 6 – 159 x 159 mm (bore x stroke)
Water cooled: Yes
Direct injection: Yes
Radiator: Enlarged tropical radiator

Torque converter: 3-element, single-stage, single phase, torque converter with lockup clutch
Transmission: Planetary gear type, multiple-disc clutch, hydraulically-actuated and force lubricated
Main drive: Spiral bevel gear, single-stage speed reduction, splash lubrication
Steering clutch: Level controlled steering clutches. Wet, multiple-disc, spring loaded, hydrauli- cally released . Steering clutches and brakes are interconnected.
Steering brake: Pedal/level controlled steering brake. Wet, multiple disc, spring loaded, hydraulically released and normally engaged. Steering clutches and brakes are interconnected.
Final drive: Spur and planetary gear sets double reduction, splash lubrication.
Number of drive wheel teeth: 25

Ripper type: Single shank ripper
Maximum digging depth: 1435 mm
Maximum lift above ground: 1105 mm
Weight: 3946 kg (without cylinders

Fuel tank: 640 L
Engine coolant: 121 L
Engine oil: 47 L
Hydraulic tank: 164 L
Transmission and steering case: 185 L
Final drive case: 110 L each side

Type: Sprayed beam, suspended structure of equalizer
Carrier rollers: 2 each side
Track rollers: 7 each side
Track type: Master link, single grouser, sealed and lubricated
Track shoe width: 610 mm
Grouser height: 93 mm
No. of track shoes: 40 each side
Pitch: 280 mm
Ground pressure: 0.1469 Mpa

Rated pressure: 20.6 MPa
Pump type: Gear Pump
Flow rate: 243 L/min
Blade lift cylinder: ?150 mm ? 2
Blade tilt cylinder: ?225 mm ? 1
Ripper cylinder: ?225 mm ? 2, ?200 mm ? 2

Adjustable air suspension seat: YES
Seat belt: YES
Strobe light: YES
Fire extinguisher: YES, SABS Standard
Engine oil pressure meter: YES
Hydraulic oil temperature meter: YES
Coolant temperature meter: YES
Hour meter: YES
Voltage meter: YES

Overall length: 10387 mm
Overall width: 4690 mm
Overall height: 4162 mm
Ripper overall width: 3630 mm
Machine width (Blade off): 8576 mm
Machine length (Blade off): 610 mm
Min. ground clearance: 6.786 mm
Gradeability: 30?
Track Gauge: 2500 mm
Operating weight: 67,5 ton

Batteries: 2 x 12 V-165 Ah
Starter Motor: 7.5 kW
Alternator: 35 A
